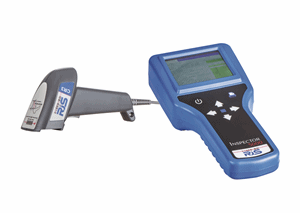

| Inspector 5000 CR3 Scanner |
The Inspector 5000 CR3 Scanner provide a Point-and-Shoot Traditional Method that also includes the ISO 15416 and ANSI X3.182 Decodability parameter grade. This unique portable bar code verifier can interface with either a CR3 scanner or the patented RJS Auto-Optic scan head. Store and print capability, multiple scan averaging and subsymbology choices are easily accessed through a simple seven-button user interface with a large color LCD display. The scanners are easily installed by the user, which makes the unit quickly adaptable to practically any verification requirement.
Features
- Point-and-Shoot traditional verification method (Requires CR3 scanner)
- Meets ISO 15416 and ANSI X3.182 verification method (Requires optional Auto Optic scanner)
- Auto-Optic scan head that allows menu selections for four aperture sizes and two light wavelengths
- Detailed data content and bar code encode testing and results information (most important with GS1-128 bar codes)
- Auto-discriminates between all popular symbologies
- Bidirectional scanning
- Large color LCD display
- Narrow bar width calculator
- Integrated lithium ion battery
- Field upgradeable firmware (free lifetime software upgrades)
- Searchable database storage (1,000 inspection records)

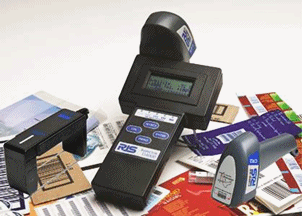

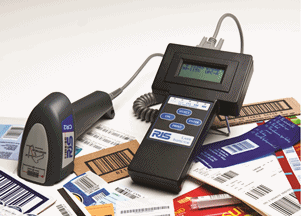

| Inspector Model D4000 |
The Model D4000 Provides the Two Most Popular Types of Verification: ISO 15416 and ANSI X3.182 Method and/or Point-and-Shoot Traditional Method. This unique portable bar code verifier can interface with either the patented RJS Auto-Optic scan head or a CR2 scanner (either in a single piece or connected with a cable). Store and print capability, multiple scan averaging and subsymbology choices are easily accessed through a simple four-button user interface. The scanners are easily installed by the user, which makes the unit quickly adaptable to practically any verification requirement.
Features
- Meets ISO 15416 and ANSI X3.182 verification method (Requires Auto Optic scanner)
- Point-and-Shoot traditional verification method (Requires CR2 or SP1 scanner)
- Auto-Optic scan head that allows menu selections for four aperture sizes and two light wavelengths
- Scan Reflectance Profile Available via Printer or Comm Port
- Auto-discriminates between all popular symbologies
- Bidirectional scanning
- Traditional analysis also provided
| Laser Inspector 1000 |
The L1000 analyzes the essential traditional verification parameters including average bar deviation, quiet zones, encodation check, mod check and ratio where applicable. It also provides the ISO/ANSI method Decodability calculation and percent of decode information. Designed for maximum ease of use, even traditionally hard to verify bar codes such as high density codes with 5 mil (.13mm) X dimensions and codes on irregular, wet, shiny, laminated or moving surfaces are accurately analyzed.
Features
- Automatically discriminates between all popular symbologies
- Store and Print capability
- Database and data match modes
- Bi-directional scanning
- Single scan, multiple scan averaging or continuous scans
- Percent Decode (in continuous scanning mode)
- Provides the full benefits of laser scanning
- Non-contact laser scanner
- Simple point and shoot operation, no training required
- Analyzes ratio, encodation, mod check, bar width deviation, quiet zone and ANSI Method Decodability grade calculation
