CL-600S/CL-600DCL-600S: Sigle side laminator
CL-600D: Double side laminator
- Product features
-Single side (CL-600S) and Double side (CL-600D)
-Simultaneous dual lamination with two cartridges (CL-600D)
-Improved function of patch-positioning adjustment in every direction
-Easy installation with CX-D80 by infrared communication
-Electronic (front door), and Kensington locks installed
-In accordance with application, various types of laminating media is available
-Customized hologram design with security features can be provided
-Smart body & design suitable for every location
-Intellectual status monitor program to see the laminator status
Specifications
| Laminating method | Thermal roller transfer |
|---|---|
| Laminating side | Single sided (CL-600S), Double sided (CL-600D) |
| Laminating speed | 16 – 36 sec per card : single, and double sided |
| Connection | Infrared communication with CX-D80 |
| Temperature config | 90℃ – 180℃ (adjustable on 5℃ basis) |
| Speed config | 3 mm/s – 12 mm/s (adjustable on 0.5 mm/s basis) |
| Dimension | W210 x D333 x H360 (mm) |
| Weight | CL-600S: 8.5kg CL-600D: 9.5kg |
| Power Supply | Maximum 3A (100 to 120V), Maximum 1.5A (220 to 240V) |
| Operating Environment | 15℃ – 30℃, 35％ – 70％ non condensing humidity |
| Laminating media | 1.0/0.6mil patch, 1.0/0.6mil smart card patch, overlay foil |
| (Clear or holographic selectable for all the media) |
Laminate films
- For CL-600S/CL-600D, we offer two types of media: patch film and overlay foil.
1.0/0.6 mil patch film provides all-round durability against abrasion, water, humidity and UV light, which can damage and deteriorate the printed image.
Adding a customised hologram to a patch makes it possible to create a completely unique and secure card in terms of anti-counterfeiting and physical protection.
Overlay foil has almost the same durability against water, humidity and UV light as the patch.
It has little durability against abrasion, but the hologram can be transferred across the entire card surface, unlike the patch film (which leaves a 2 mm space around the edge), making it ideal for card decoration.
DNP has one generic hologram design for the overlay and it is certainly possible to create your own design.

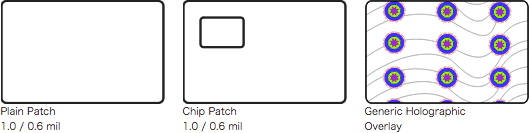

Laminate films lineup
| Product name | Product no. | Number of images |
| Clear full area 1.0 mil patch | CY-R10FC-60F | 600 images/roll |
| Clear full area 0.6 mil patch | CY-R06FC-60F | 600 images/roll |
| Clear smart card cut 1.0 mil patch | CY-R10SC-60F | 600 images/roll |
| Clear smart card cut 0.6 mil patch | CY-R06SC-60F | 600 images/roll |
| DNP Generic hologram overlay foil | CY-R00RD-100 | 1,000 images/roll |
