DNP CX-D80 retransfer card printer is the culmination of technological development. It is an innovative printer for all types of card issuance application. Building on the success of the widely adopted DNP CX printers, the CX-D80 features a thermal retransfer printing engine that is renowned for its quality and reliability. Ideal for gift cards, on-demand ID cards, and corporate and government ID cards, the CX-D80 integrates proven, long-established technology with a compact, user-friendly design.

Products

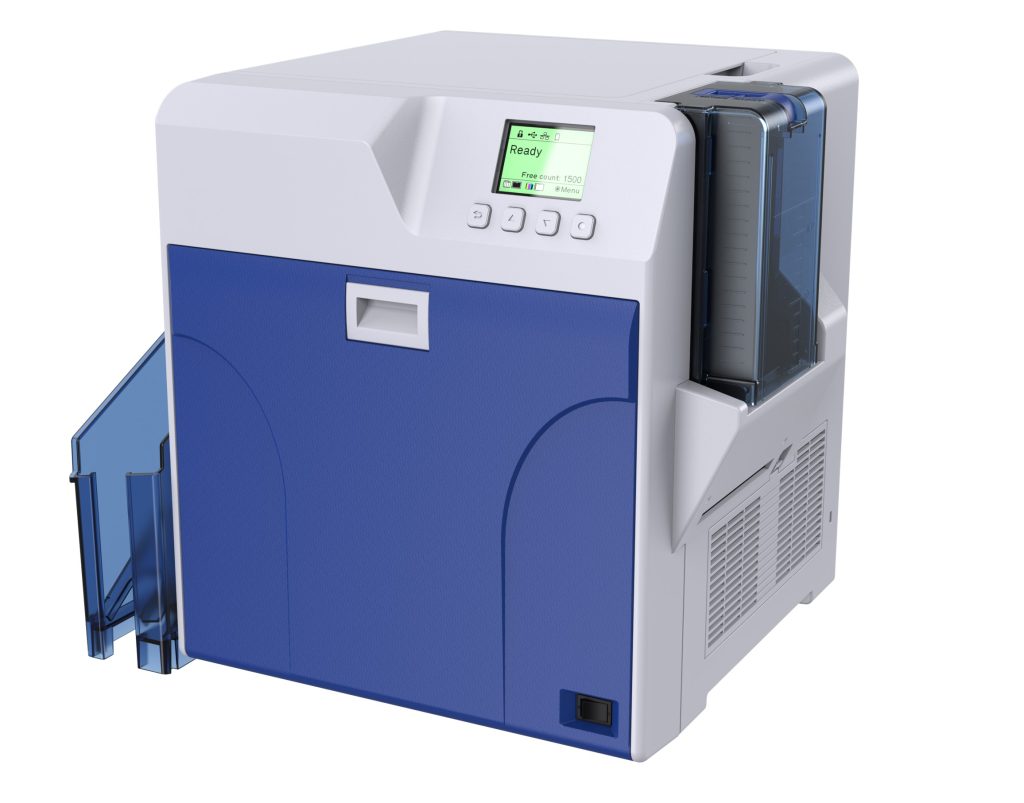

CX-D90HS: NEW 600dpi Printer

• -Resolution: 600 dpi
  -Double side

• Improvements
  -Offers enhanced printing speed (25 secs for single side with full color)
  without compromising on color fidelity
  (Note: 30 secs for single side with full color by CX-D80 series)
  -Increased card storage capacity (120 cards)
  -Improved cards’ transport mechanism to decrease card’s jam
  -Storage space for small computer
  -Enlarged LCD monitor to improve visibility
  -Easy to check remaining volume for consumables by LCD monitor

• Product features
  -Compatible with existing ink-ribbon and re-transfer film
  -Compatible with existing laminator
  -Perfect edge-to-edge printing with glossy photo finish quality
  -Damage-free printhead by retransfer method
  -Ideal for contact/contactless card and PVC card
  -Single or Double side model available
  -Highest capacity YMCK ribbon (1,000 images), less frequency of reloading
  -Electronic (hopper & front door), and Kensington locks installed
  -Smart body & design suitable for every location
  -Intellectual status Monitor Program to see the printer status
  -User-friendly accessories to keep the printer clean
  -Optional laminating module (CL-600S, CL-600D) connectable

Specifications

Printing method	Dye sublimation/resin thermal retransfer
Printable area	Full-bleed (edge-to-edge)
Print speed	25 sec : YMCK on single side
Interface	・USB2.0(Ver2.0) Full-speed(12Mbps) / Hi-speed(480Mbps) ・10BASE-T/100 BASE-TX Ethernet
Card type	PVC, Composite PVC, PET-G, ABS, etc.
Input & output capacity	120 cards each (0.76mm thickness)
Dimension	W346 x D322 x H360 (mm)
Weight	13.5kg (Single side with no optional unit)
Power supply	Maximum 3A (100 to 120V), Maximum 1.5A (220 to 240V)
Operating environment	15℃ – 30℃, 35% – 70% non condensing humidity
Ink ribbon	YMCK, YMCKK, YMCKUv, YMCKPo
Options	Magnetic stripe encoding, Contact chip encoding, Contactless IC encoding, Bend remedy unit, Lamination unit(CL-600S/CL-600D)
Safety standard/regulation	FCC, CE, UL, VCCI-B, FCC Class B, EN Class B, RoHS, CCC

DNP CX-D80 retransfer card printer

CX-D80SRS,CX-D80DS

• -Resolution: 300 dpi
  -CX-D80DS : Double side
  -CX-D80SRS: Single side, Bend remedy unit is originally installed

• Product features

  -Perfect edge-to-edge printing with glossy photo finish quality
  -Damage-free printhead by retransfer method
  -Ideal for contact/contactless card and PVC card
  -Single or Double side model available
  -Highest capacity YMCK ribbon (1,000 images), less frequency of reloading
  -Electronic (hopper & front door), and Kensington locks installed
  -Smart body & design suitable for every location
  -Intellectual status Monitor Program to see the printer status
  -User-friendly accessories to keep the printer clean
  -Optional laminating module (CL-600S, CL-600D) connectable

Specifications

Printing method	Dye sublimation/resin thermal retransfer
Printable area	Full-bleed (edge-to-edge)
Print speed	30 sec : YMCK on single side
Interface	・USB2.0(Ver2.0) Full-speed(12Mbps) / Hi-speed(480Mbps) ・10BASE-T/100 BASE-TX Ethernet
Card type	PVC, Composite PVC, PET-G, ABS, etc.
Input & output capacity	100 cards each (0.76mm thickness)
Dimension	W343 x D322 x H335 (mm)
Weight	13.0kg (Single side with no optional unit)
Power supply	Maximum 3A (100 to 120V), Maximum 1.5A (220 to 240V)
Operating environment	15℃ – 30℃, 35% – 70% non condensing humidity
Ink ribbon	YMCK, YMCKK, YMCKUv, YMCKPo
Options	Magnetic stripe encoding, Contact chip encoding, Contactless IC encoding, Bend remedy unit, Lamination unit(CL-600S/CL-600D)
Safety standard/regulation	FCC, CE, UL, VCCI-B, FCC Class B, EN Class B, RoHS, CCC

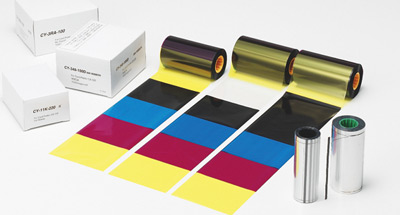

Ink ribbon

• DNP is a world-famous manufacturer of dye-sublimation ink ribbons and has developed ink ribbons for DNP CX-series card printer. Its unique lateral card-conveyor system gives it one of the largest capacities in its class. In addition, a RFID tag installed in a ribbon enables you to check the ribbon type and remaining amount on the status monitor at a glance.

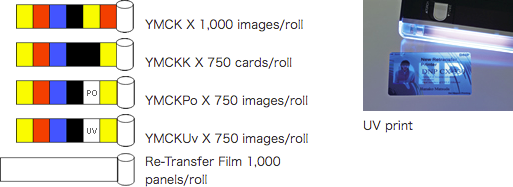

Ink ribbon lineup

Product name	Product code	Number of images per set/roll
YMCK Ink ribbon set	CY-P340A-DS	1,000 images/set
YMCKK Ink ribbon roll	CY-35K-75DS	750 images/roll
YMCKUv Ink ribbon roll	CY-35U-75DS	750 images/roll
YMCKPo Ink ribbon set	CY-P35A-DS	750 images/set
Re-transfer film	CY-3RA-100	1,000 images/roll
